CorroChip Cover
CorroChip Cover is an innovative embedded sensor system that detects early signs of corrosion in reinforced concrete. It identifies the penetration of chlorides and other corrosion-causing contaminants into the concrete and measures the depth of the carbonation front. CorroChip Cover is highly effective at detecting the root cause of deterioration and the processes that initiate it, providing accurate, real-time data to protect your assets and optimize structural maintenance, extendin, extending their lifespans.
Main features:
- Early detection
- Remote monitoring
- Guaranteed durability
- Actionable information
- Customizable alerts
- Management platform
Anticipation of the critical corrosion threshold
In reinforced concrete structures subjected to aggressive environmental conditions, chlorides migrate slowly through the pores of the concrete. Over time, they accumulate on the surface of the steel until they reach the so-called "critical chloride threshold." It is at this tipping point that the passive layer protecting the steel breaks down and the corrosion process begins irreversibly.
Detection of chlorides and contaminants
CorroChip Cover acts preventively in the preliminary phase of this process. By continuously measuring the movement and concentration of chlorides and other harmful ions through the coating, the system detects the threat of corrosion long before contaminants reach the critical threshold in the reinforcement. This early detection provides the information and the necessary margin for action to prevent damage.
Measurement of the depth of the carbonation front
Additionally, the detection system simultaneously detects the depth of the carbonation front by measuring potentials and currents, to accurately and early identify when a corrosion process is starting.

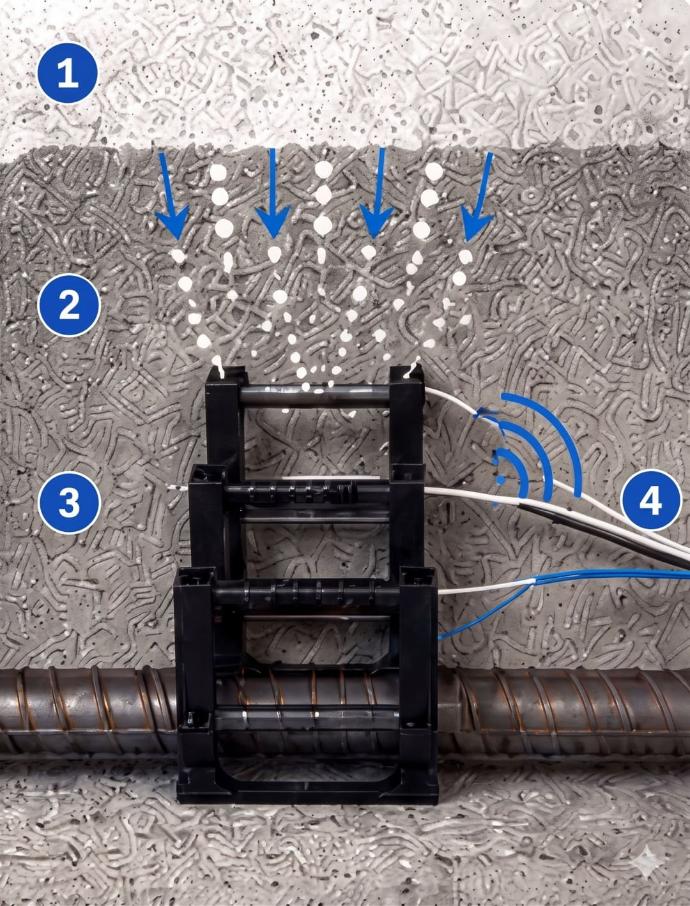

How it works

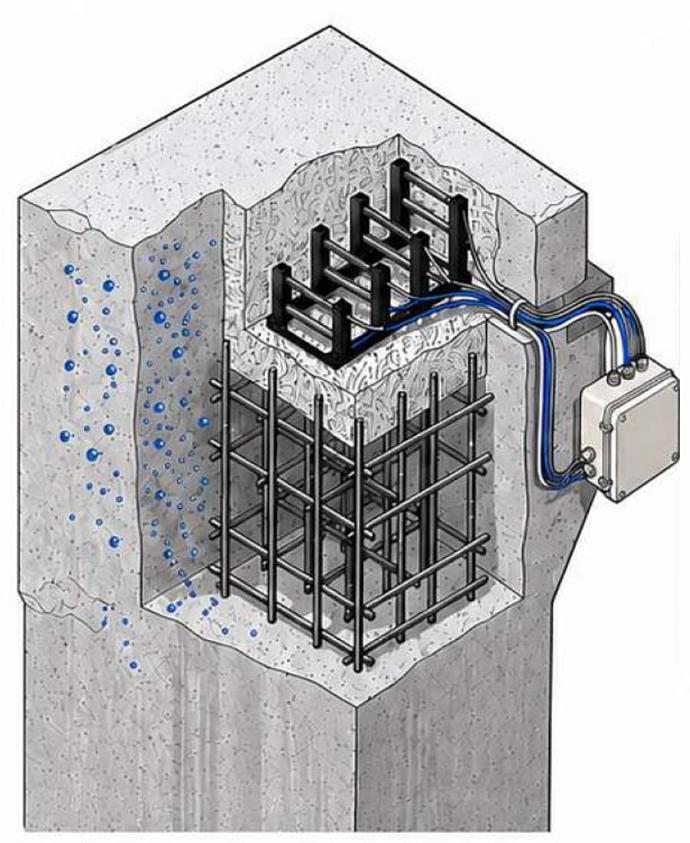

CorroChip Cover is installed in the concrete during construction, along with other sensors (such as temperature, relative humidity, and corrosion potential). Over time, the system continuously measures the movement of chlorides and other harmful ions through the concrete coating.
- Environmental contaminants penetrate the concrete through the outer surface.
- Chlorides react with the sensor electrodes.
- CorroChip Cover sensors detect and measure ion concentration over time.
- The measured data is transmitted wirelessly for remote access and analysis.

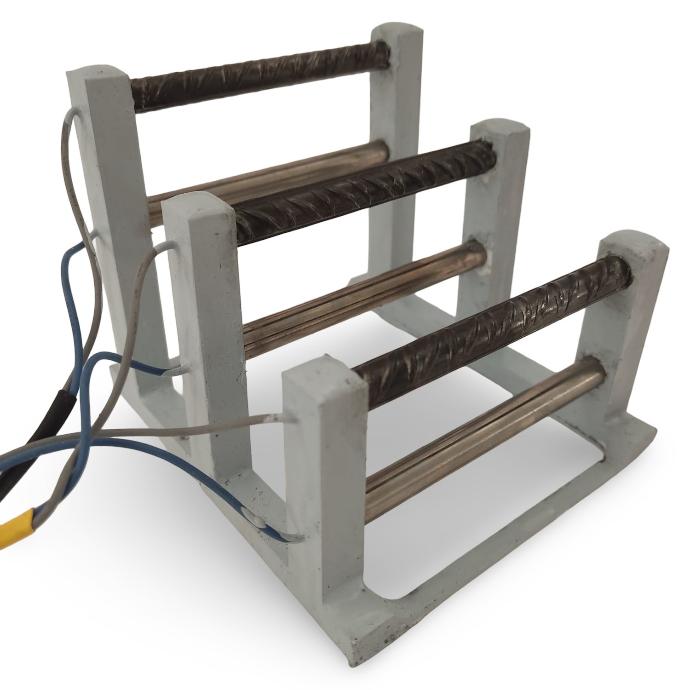

Robust and highly durable technology
To ensure long-term performance in harsh environments, CorroChip Cover features a highly resilient architecture:
- High-performance polymer frame.
- Reference electrodes made of Metal Oxide Metal for greater stability and durability.
- Temperature and relative humidity sensors for correlation of results.
- Chemical-resistant encapsulation.
- Designed to withstand high-alkalinity and high-humidity environments.
IoT telemetry with data transmission and presentation
The CorroChip Cover system ensures the secure transmission and actionable presentation of sensor-captured data. It uses long-range wireless technology for transmission and an intuitive management platform for real-time monitoring of key metrics and trend analysis.
Long-range radio connectivity
CorroChip Cover uses low-power radio technology for reliable, long-range wireless communication. It features long battery life, secure transmission via encrypted data, and easy integration with gateways and various cloud platforms.
Management Platform
All the information captured by CorroChip Cover is processed in an intuitive control panel that enables real-time monitoring, analysis of historical trends, and generation of exportable reports. The software provides critical metrics such as:
- Depth of chloride penetration.
- Concentration levels of pollutants.
- Estimated time until corrosion risk.
- Custom alerts and thresholds.
Applications
CorroChip Cover is the ideal tool for preventive monitoring in projects subject to demanding conditions:
- Bridges and overpasses
- Marine structures
- Parking
- Industrial facilities
- Tunnels and underground structures
- Buildings and infrastructure in general
